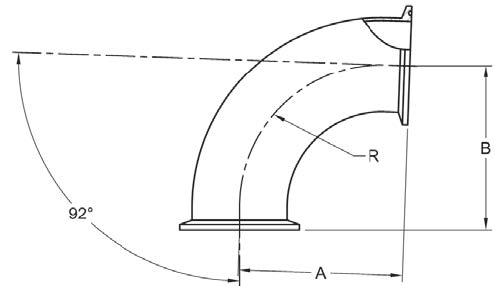

S2CMP92 92 DEGREE ELBOW, CLAMP ENDS
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
S2CMP92-.50 | 1/2 | 1.559 | 1.608 | 1.13 |
S2CMP92-.75 | 3/4 | 1.667 | 1.607 | 1.13 |
S2CMP92-1 | 1 | 1.912 | 1.983 | 1.5 |
S2CMP92-1.5 | 1 1/2 | 2.724 | 2.733 | 2.25 |
S2CMP92-2 | 2 | 3.341 | 3.481 | 3 |
S2CMP92-2.5 | 2 1/2 | 4.056 | 4.233 | 3.75 |
S2CMP92-3 | 3 | 4.770 | 4.983 | 4.5 |
S2CMP92-4 | 4 | 6.320 | 6.606 | 6 |
