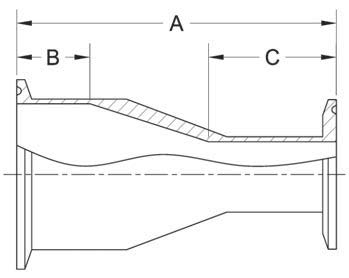

| Part Number | Size (inches) | A | B (I.D) (min.) | C (I.D.) (min.) | STP File |
|---|---|---|---|---|---|
S31S-14MP-.75X.50 | 3/4 X 1/2 | 3.125 | 0.375 | 1.125 | STP |
S31S-14MP-1.5X.75 | 1 1/2 X 3/4 | 4.000 | 0.375 | 1.125 | STP |
S31S-14MP-1.5X1 | 1 1/2 X 1 | 3.500 | 0.375 | 1.125 | STP |
S31S-14MP-1X.50 | 1 X 1/2 | 3.500 | 0.375 | 1.125 | STP |
S31S-14MP-1X.75 | 1 X 3/4 | 3.125 | 0.375 | 1.125 | — |
S31S-14MP-2.5X1.5 | 2 1/2 X 1 1/2 | 4.375 | 0.375 | 1.125 | — |
S31S-14MP-2.5X2 | 2 1/2 X 2 | 3.500 | 0.375 | 1.125 | STP |
S31S-14MP-2X1 | 2 X 1 | 4.375 | 0.375 | 1.125 | — |
S31S-14MP-2X1.5 | 2 X 1 1/2 | 3.500 | 0.375 | 1.125 | STP |
S31S-14MP-3X1.5 | 3 X 1 1/2 | 5.250 | 0.375 | 1.125 | — |
S31S-14MP-3X2 | 3 X 2 | 4.375 | 0.375 | 1.125 | — |
S31S-14MP-3X2.5 | 3 X 2 1/2 | 3.625 | 0.375 | 1.125 | STP |
S31S-14MP-4X2 | 4 X 2 | 6.250 | 0.375 | 1.125 | STP |
S31S-14MP-4X2.5 | 4 X 2 1/2 | 5.375 | 0.375 | 1.125 | STP |
S31S-14MP-4X3 | 4 X 3 | 5.000 | 0.375 | 1.625 | STP |
S31S-14MP-6X3 | 6 X 3 | 8.500 | 0.375 | 1.625 | STP |
S31S-14MP-6X4 | 6 X 4 | 7.000 | 0.375 | 1.625 | STP |
