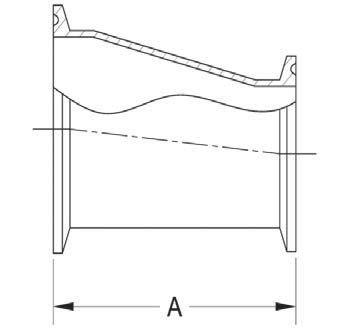

| Part Number | Size (inches) | A | STP File |
|---|---|---|---|
S32-14MP-.75X.50 | 3/4 X 1/2 | 2.000 | STP |
S32-14MP-1.5X.50 | 1 1/2 X 1/2 | 3.500 | STP |
S32-14MP-1.5X.75 | 1 1/2 X 3/4 | 3.000 | — |
S32-14MP-1.5X1 | 1 1/2 X 1 | 3.000 | STP |
S32-14MP-1X.50 | 1 X 1/2 | 2.500 | — |
S32-14MP-1X.75 | 1 X 3/4 | 2.000 | STP |
S32-14MP-2.5X.50 | 2 1/2 X 1/2 | 8.500 | STP |
S32-14MP-2.5X.75 | 2 1/2 X 3/4 | 8.000 | STP |
S32-14MP-2.5X1 | 2 1/2 X 1 | 7.000 | STP |
S32-14MP-2.5X1.5 | 2 1/2 X 1 1/2 | 5.000 | STP |
S32-14MP-2.5X2 | 2 1/2 X 2 | 3.000 | STP |
S32-14MP-2X.50 | 2 X 1/2 | 6.500 | STP |
S32-14MP-2X.75 | 2 X 3/4 | 6.000 | STP |
S32-14MP-2X1 | 2 X 1 | 5.000 | STP |
S32-14MP-2X1.5 | 2 X 1 1/2 | 3.000 | STP |
S32-14MP-3X.50 | 3 X 1/2 | 10.500 | STP |
S32-14MP-3X.75 | 3 X 3/4 | 10.000 | — |
S32-14MP-3X1 | 3 X 1 | 9.000 | STP |
S32-14MP-3X1.5 | 3 X 1 1/2 | 7.000 | STP |
S32-14MP-3X2 | 3 X 2 | 5.000 | STP |
S32-14MP-3X2.5 | 3 X 2 1/2 | 3.000 | — |
S32-14MP-4X1 | 4 X 1 | 13.125 | STP |
S32-14MP-4X1.5 | 4 X 1 1/2 | 11.125 | STP |
S32-14MP-4X2 | 4 X 2 | 9.125 | STP |
S32-14MP-4X2.5 | 4 X 2 1/2 | 7.125 | STP |
S32-14MP-4X3 | 4 X 3 | 5.125 | STP |
S32-14MP-6X3 | 6 X 3 | 7.500 | STP |
S32-14MP-6X4 | 6 X 4 | 7.625 | STP |
