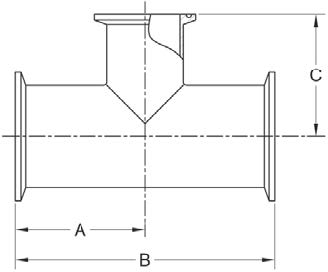

| Part Number | Size (inches) | A | B | C | STP File |
|---|---|---|---|---|---|
S7RMP-.75X.50 | 3/4 X 1/2 | 2.500 | 5.000 | 2.500 | STP |
S7RMP-1.5X.50 | 1 1/2 X 1/2 | 2.875 | 5.750 | 2.875 | STP |
S7RMP-1.5X.75 | 1 1/2 X 3/4 | 2.870 | 5.750 | 2.875 | — |
S7RMP-1.5X1 | 1 1/2 X 1 | 2.875 | 5.750 | 2.875 | — |
S7RMP-1X.50 | 1 X 1/2 | 2.625 | 5.250 | 2.625 | STP |
S7RMP-1X.75 | 1 X 3/4 | 2.625 | 5.250 | 2.625 | STP |
S7RMP-2.5X.50 | 2 1/2 X 1/2 | 3.625 | 7.250 | 3.375 | — |
S7RMP-2.5X.75 | 2 1/2 X 3/4 | 3.625 | 7.250 | 3.375 | — |
S7RMP-2.5X1 | 2 1/2 X 1 | 3.625 | 7.250 | 3.375 | — |
S7RMP-2.5X1.5 | 2 1/2 X 1 1/2 | 3.625 | 7.250 | 3.375 | — |
S7RMP-2.5X2 | 2 1/2 X 2 | 3.625 | 7.250 | 3.375 | — |
S7RMP-2X.50 | 2 X 1/2 | 3.375 | 6.750 | 3.125 | STP |
S7RMP-2X.75 | 2 X 3/4 | 3.375 | 6.750 | 3.125 | STP |
S7RMP-2X1 | 2 X 1 | 3.375 | 6.750 | 3.125 | — |
S7RMP-2X1.5 | 2 X 1 1/2 | 3.375 | 6.750 | 3.125 | — |
S7RMP-3X.50 | 3 X 1/2 | 3.875 | 7.750 | 3.625 | STP |
S7RMP-3X.75 | 3 X 3/4 | 3.875 | 7.750 | 3.625 | STP |
S7RMP-3X1 | 3 X 1 | 3.875 | 7.750 | 3.625 | — |
S7RMP-3X1.5 | 3 X 1 1/2 | 3.875 | 7.750 | 3.625 | — |
S7RMP-3X2 | 3 X 2 | 3.875 | 7.750 | 3.625 | — |
S7RMP-3X2.5 | 3 X 2 1/2 | 3.875 | 7.750 | 3.625 | — |
S7RMP-4X.50 | 4 X 1/2 | 4.750 | 9.500 | 4.125 | STP |
S7RMP-4X.75 | 4 X 3/4 | 4.750 | 9.500 | 4.125 | STP |
S7RMP-4X1 | 4 X 1 | 4.750 | 9.500 | 4.125 | STP |
S7RMP-4X1.5 | 4 X 1 1/2 | 4.750 | 9.500 | 4.125 | — |
S7RMP-4X2 | 4 X 2 | 4.750 | 9.500 | 4.375 | — |
S7RMP-4X2.5 | 4 X 2 1/2 | 4.750 | 9.500 | 4.375 | — |
S7RMP-4X3 | 4 X 3 | 4.750 | 9.500 | 4.375 | — |
S7RMP-6X3 | 6 X 3 | 7.125 | 14.250 | 5.375 | — |
S7RMP-6X4 | 6 X 4 | 7.125 | 14.250 | 5.750 | — |
