Features:
Also available with butt-weld outlet.

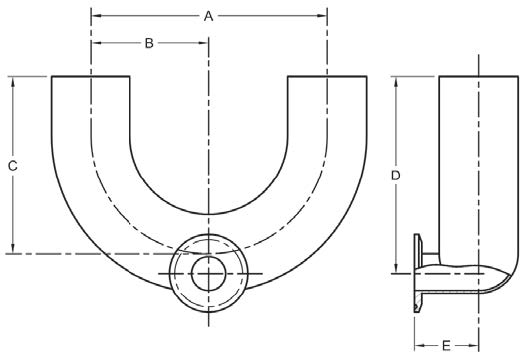

| Part Number | Size (inches) | A | B | C | D | STP File |
|---|---|---|---|---|---|---|
S2USWWK-.75X.50 | 3/4 X 1/2 | 4.500 | 2.250 | 3.750 | 0.388 | — |
S2USWWK-1.5X.50 | 1 1/2 X 1/2 | 4.500 | 2.250 | 4.500 | 5.000 | STP |
S2USWWK-1.5X.75 | 1 1/2 X 3/4 | 4.500 | 2.250 | 4.500 | 4.875 | STP |
S2USWWK-1.5X1 | 1 1/2 X 1 | 4.500 | 2.250 | 4.500 | 4.750 | STP |
S2USWWK-1X.50 | 1 X 1/2 | 3.000 | 1.500 | 3.000 | 3.250 | STP |
S2USWWK-1X.75 | 1 X 3/4 | 3.000 | 1.500 | 3.000 | 3.125 | — |
S2USWWK-2.5X.50 | 2 1/2 X 1/2 | 7.500 | 3.750 | 5.750 | 6.750 | — |
S2USWWK-2.5X.75 | 2 1/2 X 3/4 | 7.500 | 3.750 | 5.750 | 6.625 | STP |
S2USWWK-2.5X1 | 2 1/2 X 1 | 7.500 | 3.750 | 5.750 | 6.500 | STP |
S2USWWK-2.5X1.5 | 2 1/2 X 1 1/2 | 7.500 | 3.750 | 5.750 | 6.250 | — |
S2USWWK-2.5X2 | 2 1/2 X 2 | 7.500 | 3.750 | 5.750 | 6.000 | STP |
S2USWWK-2X.50 | 2 X 1/2 | 6.000 | 3.000 | 5.000 | 5.750 | STP |
S2USWWK-2X.75 | 2 X 3/4 | 6.000 | 3.000 | 5.000 | 5.625 | STP |
S2USWWK-2X1 | 2 X 1 | 6.000 | 3.000 | 5.000 | 5.500 | — |
S2USWWK-2X1.5 | 2 X 1 1/2 | 6.000 | 3.000 | 5.000 | 5.250 | STP |
S2USWWK-3X.50 | 3 X 1/2 | 9.000 | 4.500 | 6.500 | 7.750 | — |
S2USWWK-3X.75 | 3 X 3/4 | 9.000 | 4.500 | 6.500 | 7.625 | STP |
S2USWWK-3X1 | 3 X 1 | 9.000 | 4.500 | 6.500 | 7.500 | — |
S2USWWK-3X1.5 | 3 X 1 1/2 | 9.000 | 4.500 | 6.500 | 7.250 | — |
S2USWWK-3X2 | 3 X 2 | 9.000 | 4.500 | 6.500 | 7.000 | STP |
S2USWWK-3X2.5 | 3 X 2 1/2 | 9.000 | 4.500 | 6.500 | 6.750 | — |
S2USWWK-4X.50 | 4 X 1/2 | 12.000 | 6.000 | 8.500 | 10.250 | — |
S2USWWK-4X.75 | 4 X 3/4 | 12.000 | 6.000 | 8.500 | 10.125 | STP |
S2USWWK-4X1 | 4 X 1 | 12.000 | 6.000 | 8.500 | 10.000 | STP |
S2USWWK-4X1.5 | 4 X 1 1/2 | 12.000 | 6.000 | 8.500 | 9.750 | — |
S2USWWK-4X2 | 4 X 2 | 12.000 | 6.000 | 8.500 | 9.500 | STP |
S2USWWK-4X2.5 | 4 X 2 1/2 | 12.000 | 6.000 | 8.500 | 9.250 | — |
S2USWWK-4X3 | 4 X 3 | 12.000 | 6.000 | 8.500 | 9.000 | — |
