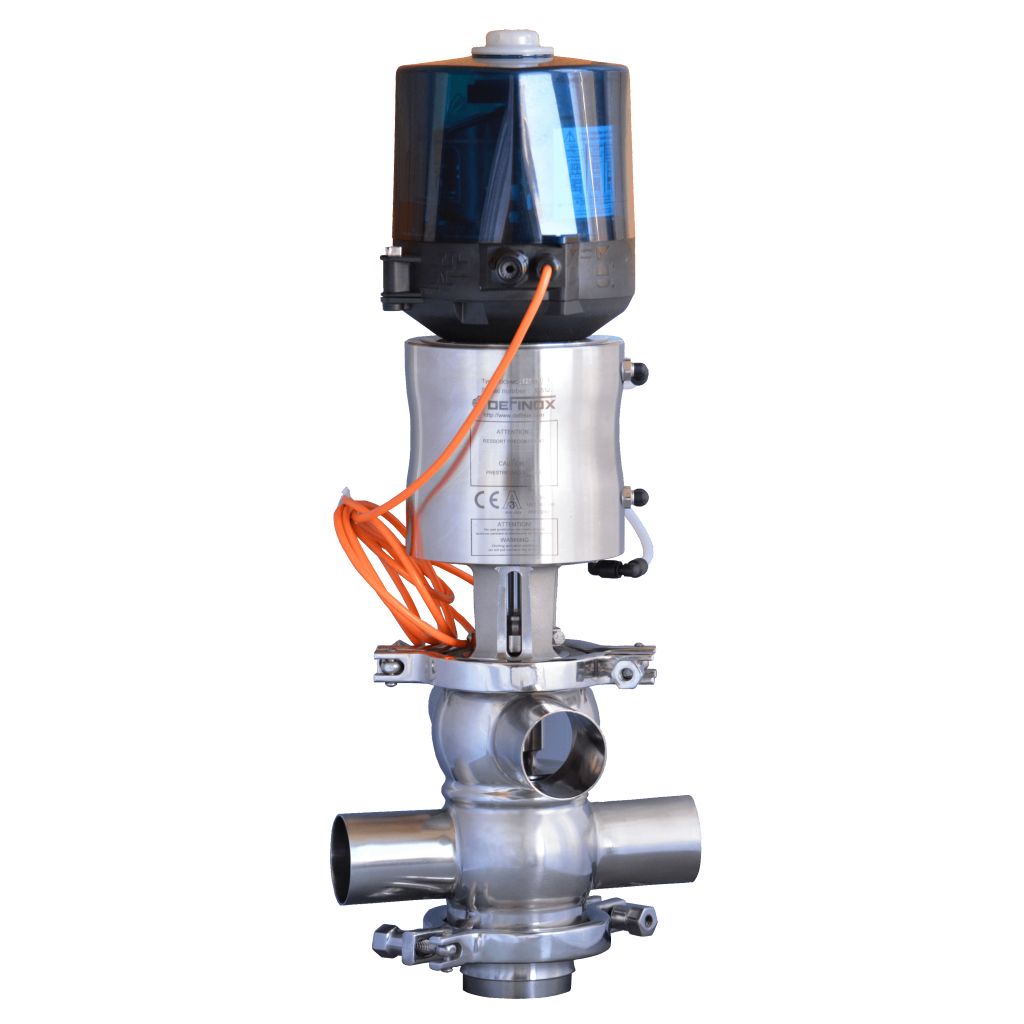

Features:
Simple and high-tech design:
- No need for an additional seal, due to an intermediate plug made from PEEK Thermoplastic (FDA approved).
- 3 identical O-rings which avoid the risk of confusion between the spare parts during maintenance operations.
- The innovative design of the intermediate plug prevents turbulences into the leakage chamber and facilitates its correct positioning onto the lower plug.
- In-house and independent tests performed.
Patented solution:
- The intermediate plug ensures double protection, even during the seat lifting operations:
- No risk of mixing between two different liquids.
- Natural vacuum in the leakage chamber. The patented design of the plug assembly prevents any CIP solution transfer into the opposite leakage chamber.
3-A design:
- Our valve technology complies with 3-A standard 85-02 which allows pasteurized milk in one chamber while CIP solution is flowing into the other chamber, without any risk of cross mixing. Another feature is to provide a leakage section identical to the one of the process pipeline.
Tech Specs
Working conditions
- Working temperature – 23°F to 248°F (5°C to 120°C)
- Sterilization temperature – 266°F (130°C)
- Max. working pressure – 130 psi (9 bar) except during cleaning operations: 101 psi (7 bar)
- Compressed air supply pressure – from 72 to 101 psi (from 5 to 7 bar) with ACS control top. Up to 116 psi (8 bar) indirect supply
Surface Finish
- Interior – 32Ra (0.8 µm)
- Exterior – 47Ra (1.2 µm)
Command-ACS Control TOP
The ACS control top offers numerous options to facilitate the control and command of the VDCI MC PMO-C:
- AS-i or multi-voltage interface
- Use of linear sensor
- Detection of movement for each plug
- Accurate adjustment of the sensor
- Quick disassembly of the control top for easy maintenance
