Features:
Available in 304 material only. Note: “A” dimension does not include teflon collar assembly. Includes PTFE collar and PTFE/EPDM envelope gasket.

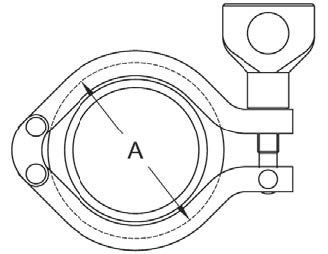

A12MPS SWIVEL JOINT CLAMP ASSEMBLY
| Part Number | Size (inches) | A | Pressure Rating @ 70°F. |
|---|---|---|---|
A12MPS-1 | 1 & 1 1/2 | 2.122 | 50 |
A12MPS-2 | 2 | 2.654 | 50 |
A12MPS-2.5 | 2 1/2 | 3.185 | 50 |
A12MPS-3 | 3 | 3.717 | 50 |
A12MPS-4 | 4 | 4.820 | 50 |
Available in 304 material only. Note: “A” dimension does not include teflon collar assembly. Includes PTFE collar and PTFE/EPDM envelope gasket.
