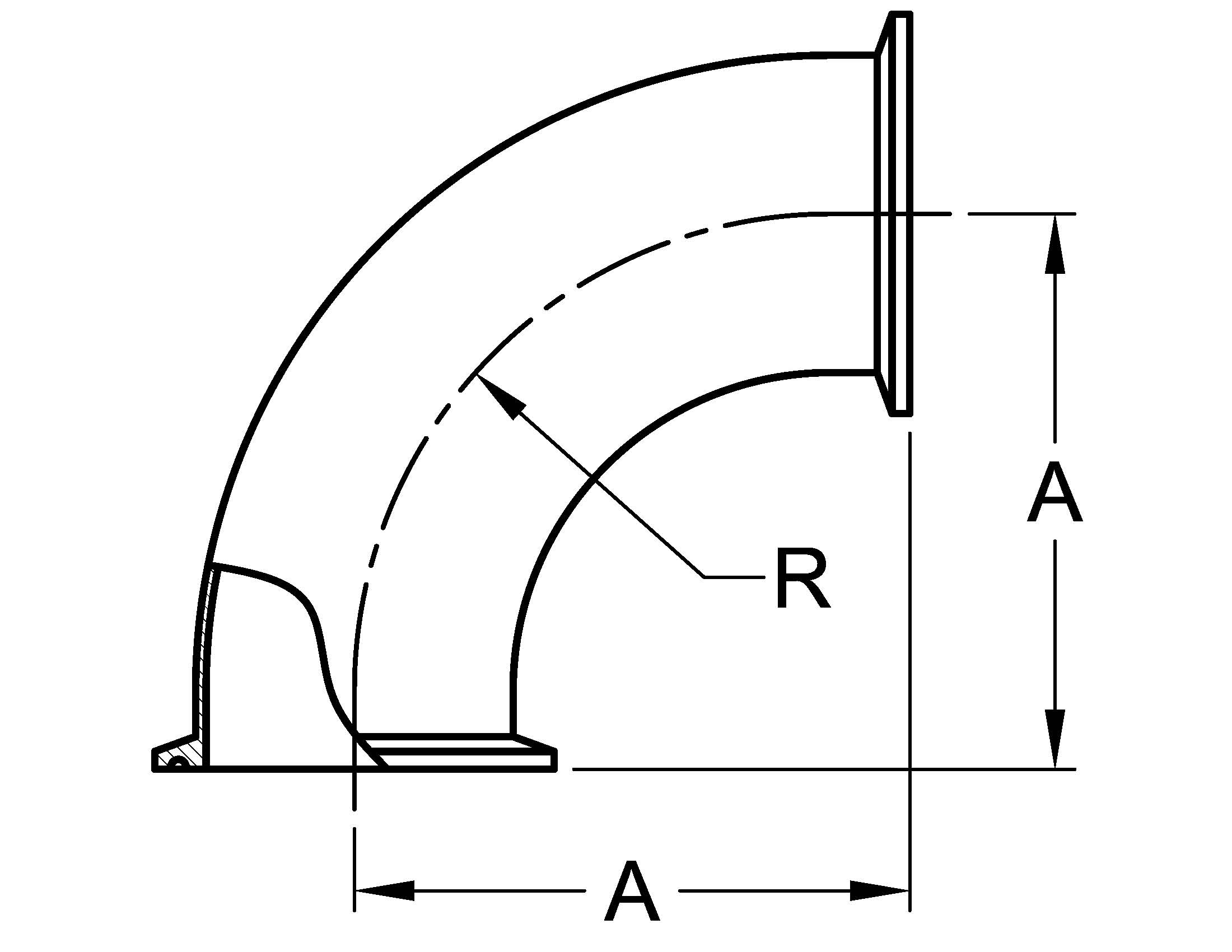

| Part Number | Size (inches) | A | R | STP File |
|---|---|---|---|---|
2CMP-.50 | 1/2 | 1.250 | 0.75 | STP |
2CMP-.50L | 1/2 | 1.625 | 1.13 | STP |
2CMP-.75 | 3/4 | 1.625 | 1.13 | STP |
2CMP-1 | 1 | 2.000 | 1.5 | STP |
2CMP-1.5 | 1 1/2 | 2.750 | 2.25 | STP |
2CMP-2 | 2 | 3.500 | 3 | STP |
2CMP-2.5 | 2 1/2 | 4.250 | 3.75 | STP |
2CMP-3 | 3 | 5.000 | 4.5 | STP |
2CMP-4 | 4 | 6.625 | 6 | STP |
2CMP-6 | 6 | 9.875 | 9 | STP |
2CMP-8 | 8 | 12.875 | 12 | STP |
