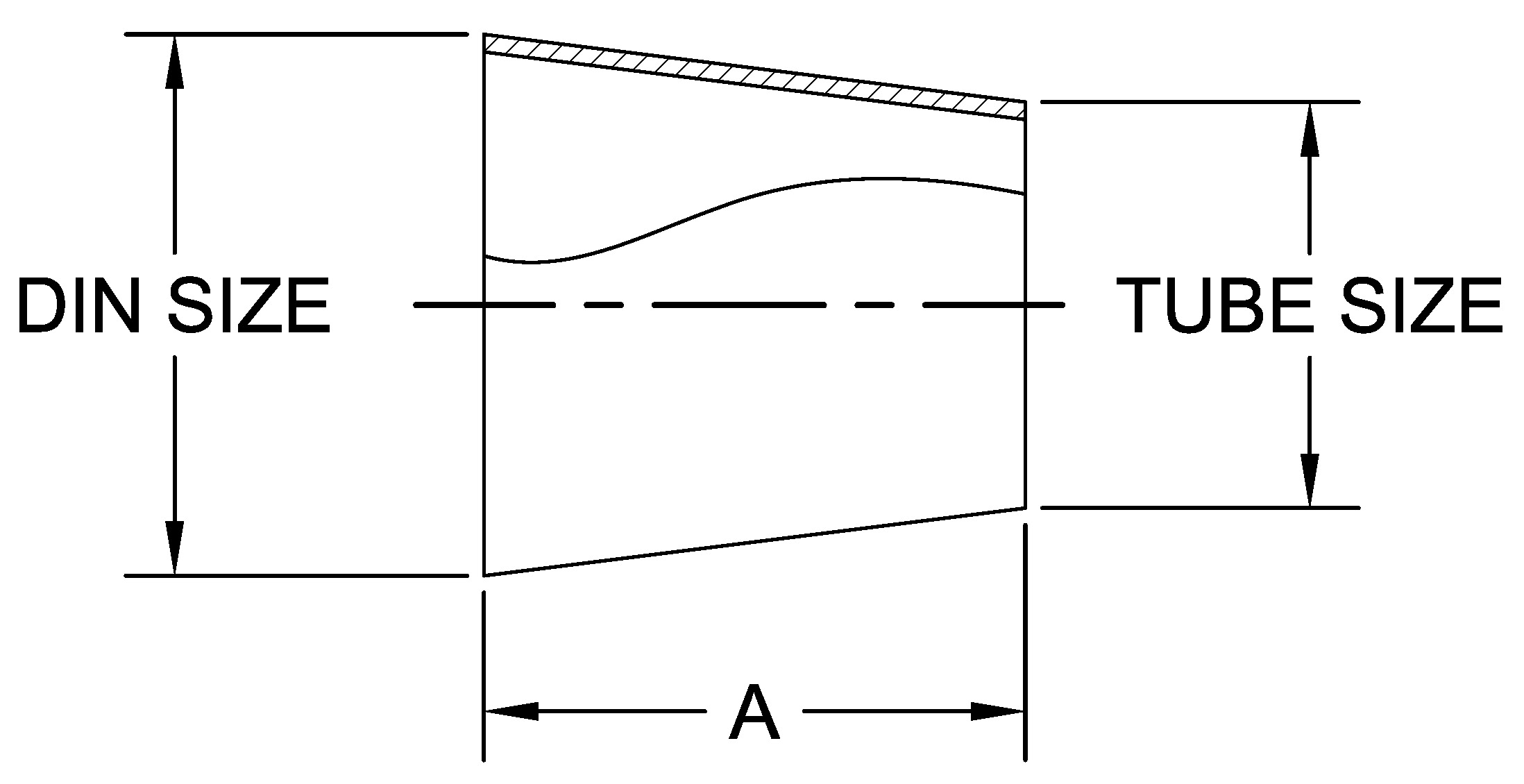

| Part Number | Size (inches) | Tube Size (inches) | A |
|---|---|---|---|
DIA00900 | DN20 - (.905) | 1.000 | 0.380 |
DIA01000 | DN25 - (1.142) | 1.000 | 0.567 |
DIA01500 | DN40 - (1.614) | 1.500 | 1.000 |
DIA02000 | DN50 - (2.087) | 2.000 | 1.250 |
DIA02505 | DN65 - (2.756) | 2.500 | 1.024 |
DIA03000 | DN80 - (3.346) | 3.000 | 1.125 |
DIA04000 | DN100 - (4.094) | 4.000 | 2.000 |
