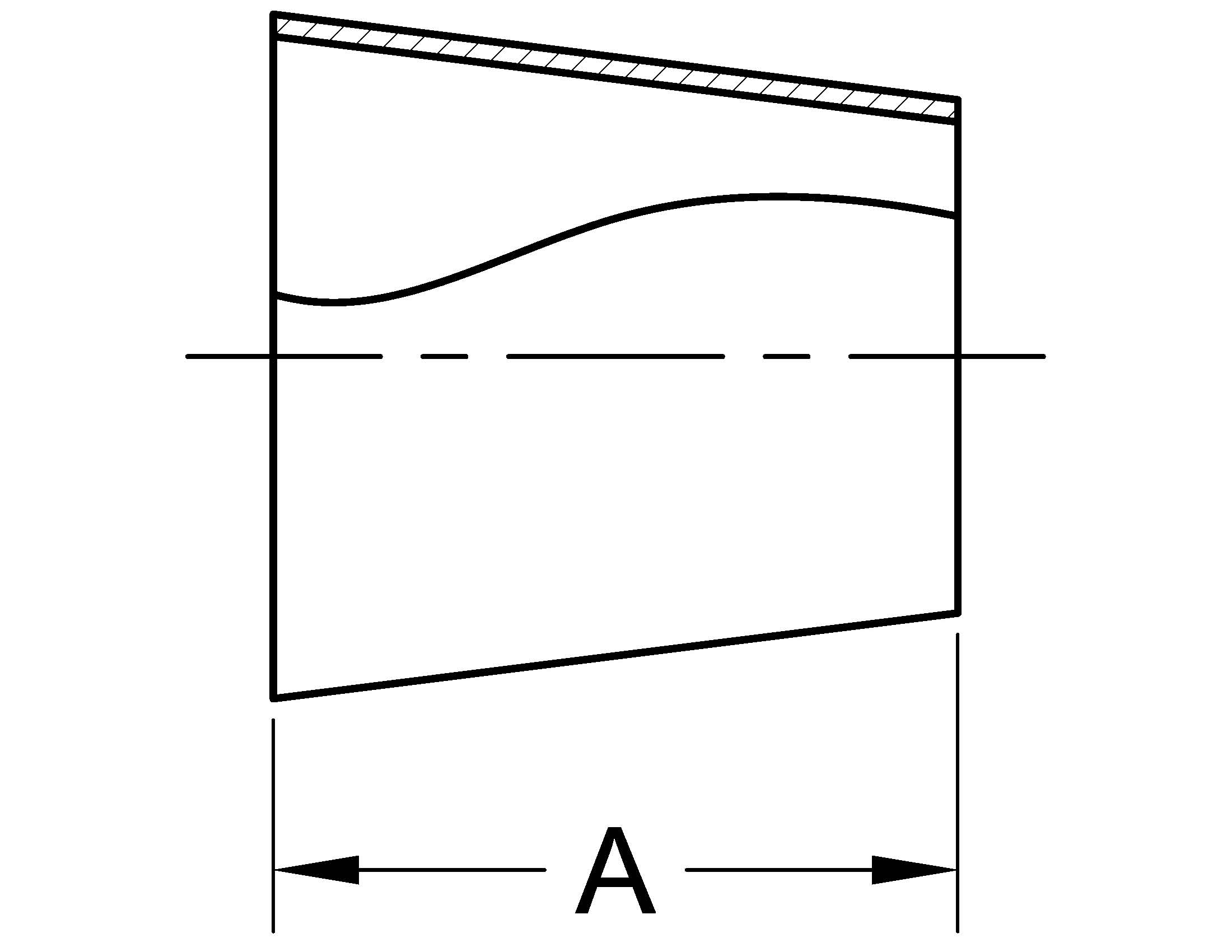

| Part Number | Size (inches) | A | STP File |
|---|---|---|---|
31W-.50X.25 | 1/2 X 1/4 | 0.750 | STP |
31W-.50X.375 | 1/2 X 3/8 | 1.000 | STP |
31W-.75X.50 | 3/4 X 1/2 | 1.000 | STP |
31W-1.5X.50 | 1 1/2 X 1/2 | 4.000 | STP |
31W-1.5X.75 | 1 1/2 X 3/4 | 3.000 | STP |
31W-1.5X1 | 1 1/2 X 1 | 2.000 | STP |
31W-1X.50 | 1 X 1/2 | 2.000 | STP |
31W-1X.75 | 1 X 3/4 | 1.000 | STP |
31W-2.5X1.5 | 2 1/2 X 1 1/2 | 4.000 | STP |
31W-2.5X2 | 2 1/2 X 2 | 2.000 | STP |
31W-2X1 | 2 X 1 | 4.000 | STP |
31W-2X1.5 | 2 X 1 1/2 | 2.000 | STP |
31W-3X1.5 | 3 X 1 1/2 | 6.000 | STP |
31W-3X2 | 3 X 2 | 4.000 | STP |
31W-3X2.5 | 3 X 2 1/2 | 2.000 | STP |
31W-4X2 | 4 X 2 | 8.000 | STP |
31W-4X3 | 4 X 3 | 4.000 | STP |
31W-6X3 | 6 X 3 | 5.500 | STP |
31W-6X4 | 6 X 4 | 5.500 | STP |
31W-8X4 | 8 X 4 | 6.000 | STP |
31W-8X6 | 8 X 6 | 6.000 | STP |
