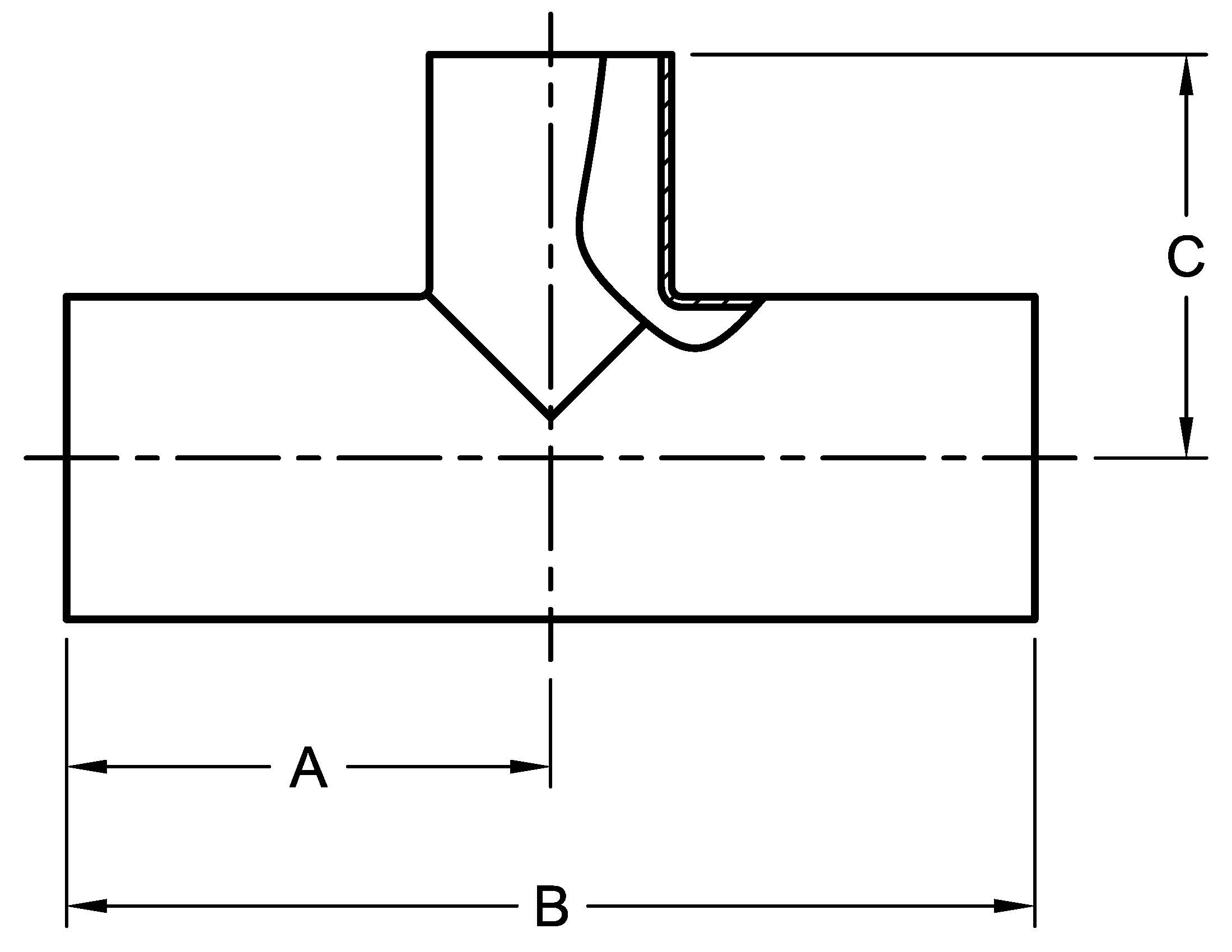

| Part Number | Size (inches) | A | B | C | STP File |
|---|---|---|---|---|---|
7RW-1.5X1 | 1 1/2 X 1 | 2.250 | 4.500 | 2.125 | — |
7RW-1X.50 | 1 X 1/2 | 2.125 | 4.250 | 2.125 | — |
7RW-1X.75 | 1 X 3/4 | 2.125 | 4.250 | 2.125 | — |
7RW-2.5X1.5 | 2 1/2 X 1 1/2 | 3.000 | 6.000 | 2.750 | STP |
7RW-2.5X2 | 2 1/2 X 2 | 3.000 | 6.000 | 3.250 | STP |
7RW-2X1 | 2 X 1 | 3.000 | 6.000 | 2.375 | STP |
7RW-2X1.5 | 2 X 1 1/2 | 3.000 | 6.000 | 2.500 | STP |
7RW-3X1.5 | 3 X 1 1/2 | 3.250 | 6.500 | 3.000 | STP |
7RW-3X2 | 3 X 2 | 3.250 | 6.500 | 3.500 | STP |
7RW-3X2.5 | 3 X 2 1/2 | 3.250 | 6.500 | 3.250 | STP |
7RW-4X2 | 4 X 2 | 3.875 | 7.750 | 4.000 | STP |
7RW-4X2.5 | 4 X 2 1/2 | 3.875 | 7.750 | 3.750 | STP |
7RW-4X3 | 4 X 3 | 3.875 | 7.750 | 3.750 | STP |
