For smaller particle removal, slide the 316SS mesh overscreen over the backup tube. The strainer mesh can be reused after cleaning. Filter media and mesh must be ordered separately.

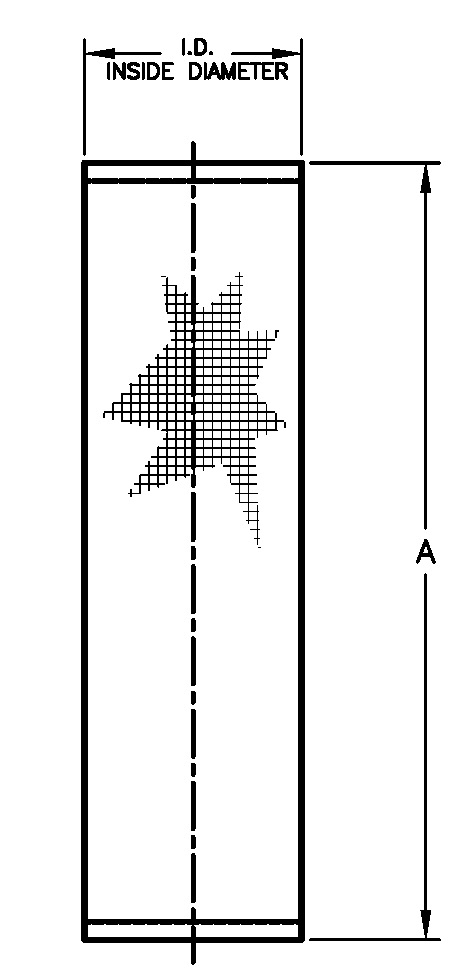

| Part Number | A | I.D. | Strainer Style | Mesh Size | Aperature | Microns |
|---|---|---|---|---|---|---|
KEM1N016 | 10.750 | 3.000 | Short, Narrow | 16 | 0.045 | 1130 |
KEM1N020 | 10.750 | 3.000 | Short, Narrow | 20 | 0.034 | 864 |
KEM1N030 | 10.750 | 3.000 | Short, Narrow | 30 | 0.021 | 533 |
KEM1N040 | 10.750 | 3.000 | Short, Narrow | 40 | 0.015 | 381 |
KEM1N050 | 10.750 | 3.000 | Short, Narrow | 50 | 0.011 | 279 |
KEM1N060 | 10.750 | 3.000 | Short, Narrow | 60 | 0.009 | 229 |
KEM1N080 | 10.750 | 3.000 | Short, Narrow | 80 | 0.007 | 178 |
KEM1N100 | 10.750 | 3.000 | Short, Narrow | 100 | 0.006 | 140 |
KEM1N120 | 10.750 | 3.000 | Short, Narrow | 120 | 0.005 | 117 |
KEM1N150 | 10.750 | 3.000 | Short, Narrow | 150 | 0.004 | 104 |
KEM1N200 | 10.750 | 3.000 | Short, Narrow | 200 | 0.0029 | 73 |
KEM1W016 | 10.750 | 3.500 | Short, Wide | 16 | 0.045 | 1130 |
KEM1W020 | 10.750 | 3.500 | Short, Wide | 20 | 0.034 | 864 |
KEM1W030 | 10.750 | 3.500 | Short, Wide | 30 | 0.021 | 533 |
KEM1W040 | 10.750 | 3.500 | Short, Wide | 40 | 0.015 | 381 |
KEM1W050 | 10.750 | 3.500 | Short, Wide | 50 | 0.011 | 279 |
KEM1W060 | 10.750 | 3.500 | Short, Wide | 60 | 0.009 | 229 |
KEM1W080 | 10.750 | 3.500 | Short, Wide | 80 | 0.007 | 178 |
KEM1W100 | 10.750 | 3.500 | Short, Wide | 100 | 0.006 | 140 |
KEM1W120 | 10.750 | 3.500 | Short, Wide | 120 | 0.005 | 117 |
KEM1W150 | 10.750 | 3.500 | Short, Wide | 150 | 0.004 | 104 |
KEM1W200 | 10.750 | 3.500 | Short, Wide | 200 | 0.0029 | 73 |
KEM2N016 | 30.750 | 3.000 | Long, Narrow | 16 | 0.045 | 1130 |
KEM2N020 | 30.750 | 3.000 | Long, Narrow | 20 | 0.034 | 864 |
KEM2N030 | 30.750 | 3.000 | Long, Narrow | 30 | 0.021 | 533 |
KEM2N040 | 30.750 | 3.000 | Long, Narrow | 40 | 0.015 | 381 |
KEM2N050 | 30.750 | 3.000 | Long, Narrow | 50 | 0.011 | 279 |
KEM2N060 | 30.750 | 3.000 | Long, Narrow | 60 | 0.009 | 229 |
KEM2N080 | 30.750 | 3.000 | Long, Narrow | 80 | 0.007 | 178 |
KEM2N100 | 30.750 | 3.000 | Long, Narrow | 100 | 0.006 | 140 |
KEM2N120 | 30.750 | 3.000 | Long, Narrow | 120 | 0.005 | 117 |
KEM2N150 | 30.750 | 3.000 | Long, Narrow | 150 | 0.004 | 104 |
KEM2N200 | 30.750 | 3.000 | Long, Narrow | 200 | 0.0029 | 73 |
KEM2W016 | 30.750 | 3.500 | Long, Wide | 16 | 0.045 | 1130 |
KEM2W020 | 30.750 | 3.500 | Long, Wide | 20 | 0.034 | 864 |
KEM2W030 | 30.750 | 3.500 | Long, Wide | 30 | 0.021 | 533 |
KEM2W040 | 30.750 | 3.500 | Long, Wide | 40 | 0.015 | 381 |
KEM2W050 | 30.750 | 3.500 | Long, Wide | 50 | 0.011 | 279 |
KEM2W060 | 30.750 | 3.500 | Long, Wide | 0.009 | 60 | 229 |
KEM2W080 | 30.750 | 3.500 | Long, Wide | 80 | 0.007 | 178 |
KEM2W100 | 30.750 | 3.500 | Long, Wide | 100 | 0.006 | 140 |
KEM2W120 | 30.750 | 3.500 | Long, Wide | 120 | 0.005 | 117 |
KEM2W150 | 30.750 | 3.500 | Long, Wide | 150 | 0.004 | 104 |
KEM2W200 | 30.750 | 3.500 | Long, Wide | 200 | 0.0029 | 73 |
