Part NumberSize (inches)Pressure Rating @ 70°F.Pressure Rating @ 300°F.L1L2L3W

BLV3CL-.50

 1/2 1,000 PSI 175 PSI 4.65 2.32 2.32 5.6

BLV3CL-.75

 3/4 1,000 PSI 175 PSI 5 2.5 2.5 5.6

BLV3CL-1

 1 1,000 PSI 175 PSI 6 3 3 6.4

BLV3CL-1.5

 1 1/2 1,000 PSI 175 PSI 6.89 3.45 3.45 7.67

BLV3CL-2

 2 1,000 PSI 175 PSI 7.48 3.74 3.74 7.67

BLV3CL-2.5

 2 1/2 800 PSI 175 PSI 8.98 4.49 4.22 14.88

BLV3CL-3

 3 800 PSI 175 PSI 10.24 5.12 4.8 16.25

BLV3CL-4

 4 800 PSI 175 PSI 11.38 5.69 6.26 16.25

Features:

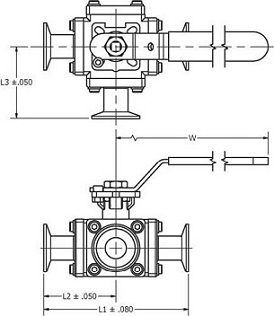

* Stocking 1/2″ through 4″ with clamp ends. * Available in L and T port. * Encapsulated teflson seats. * 316 on all product contact surfaces. * 32Ra I.D. max surface finish. * 1/2″ to 2″ rated for 1000 PSI at 1000�F. * 2 1/2″ to 4″ rated for 800 PSI at 100�F. * 1/2″ to 3″ are full port design. * 4″ are reduced port design. *ISO 5211 mounting pad for actuator. * Meets 3A Standards. * 100% tested. NOTE: Drawing, part numbers, and dimensions show are for 2-Way Clamp End Style Ball Valve. Call Steel & O’Brien for details on other configurations.
