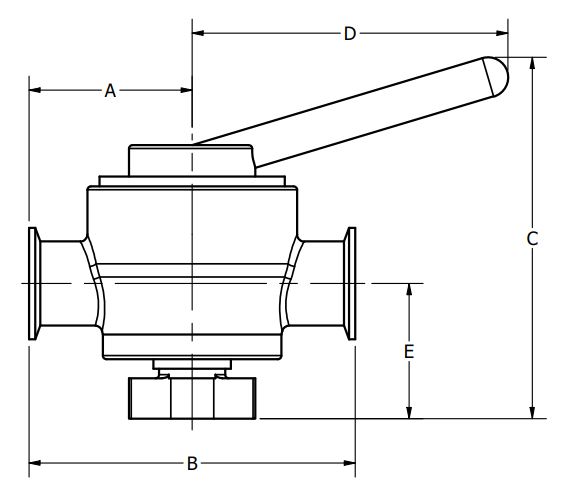

Part NumberTOP-FLO® Ready-To-GoSize (inches)ABCD

389610-316

 Yes 1 2-9/16 4-9/16 5/1/16 4-39/64

389610R-316

 Yes 1 2-9/16 4-9/16 5/1/16 4-39/64

389615-316

 Yes 1-1/2 2-29/32 5-13/16 6/7/16 5-5/8

389615R-316

 Yes 1-1/2 2-29/32 5-13/16 6/7/16 5-5/8

389620-316

 Yes 2 3-13/32 6-13/16 7/1/16 5-43/64

389620R-316

 Yes 2 3-13/32 6-13/16 7/1/16 5-43/64

389625-316

 Yes 2-1/2 4-1/8 8-1/4 8-51/64 5-59/64

389625R-316

 Yes 2-1/2 4-1/8 8-1/4 8-51/64 5-59/64

389630-316

 Yes 3 4-23/32 9-7/16 9/1/02 7-7/8

389630R-316

 Yes 3 4-23/32 9-7/16 9/1/02 7-7/8

Features:

* Rubber (Silicone) or stainless steel plug
* Materials type 316L SS
* Meets 3-A sanitary finish
* Temperature to 100° F
* Butt Weld and Bevel Seat ends are available on request

Note:

Plug Valves, because of their inherent design, are recommended only for low-pressure applications. 25 PSI maximum; for use with non-hazardous products, and at temperatures not to exceed 100 degrees Fahrenheit  They are subject to leakage almost from the initial time of installation because of normal operating, maintenance, and cleaning procedures.
