How Does a Sanitary Ball-Type Check Valve Work?

Sanitary ball-type check valves prevent reverse flow in hygienic piping systems by allowing fluid to move in one direction while restricting flow in the opposite direction. Unlike manually operated valves, ball-type check valves operate automatically in response to fluid pressure and flow conditions.

These valves are commonly used in food, beverage, dairy, and other sanitary processing applications where reliable backflow prevention and cleanability are important.

How Does a Sanitary Ball-Type Check Valve Operate?

A sanitary ball-type check valve uses an internal ball that moves in response to fluid flow and pressure.

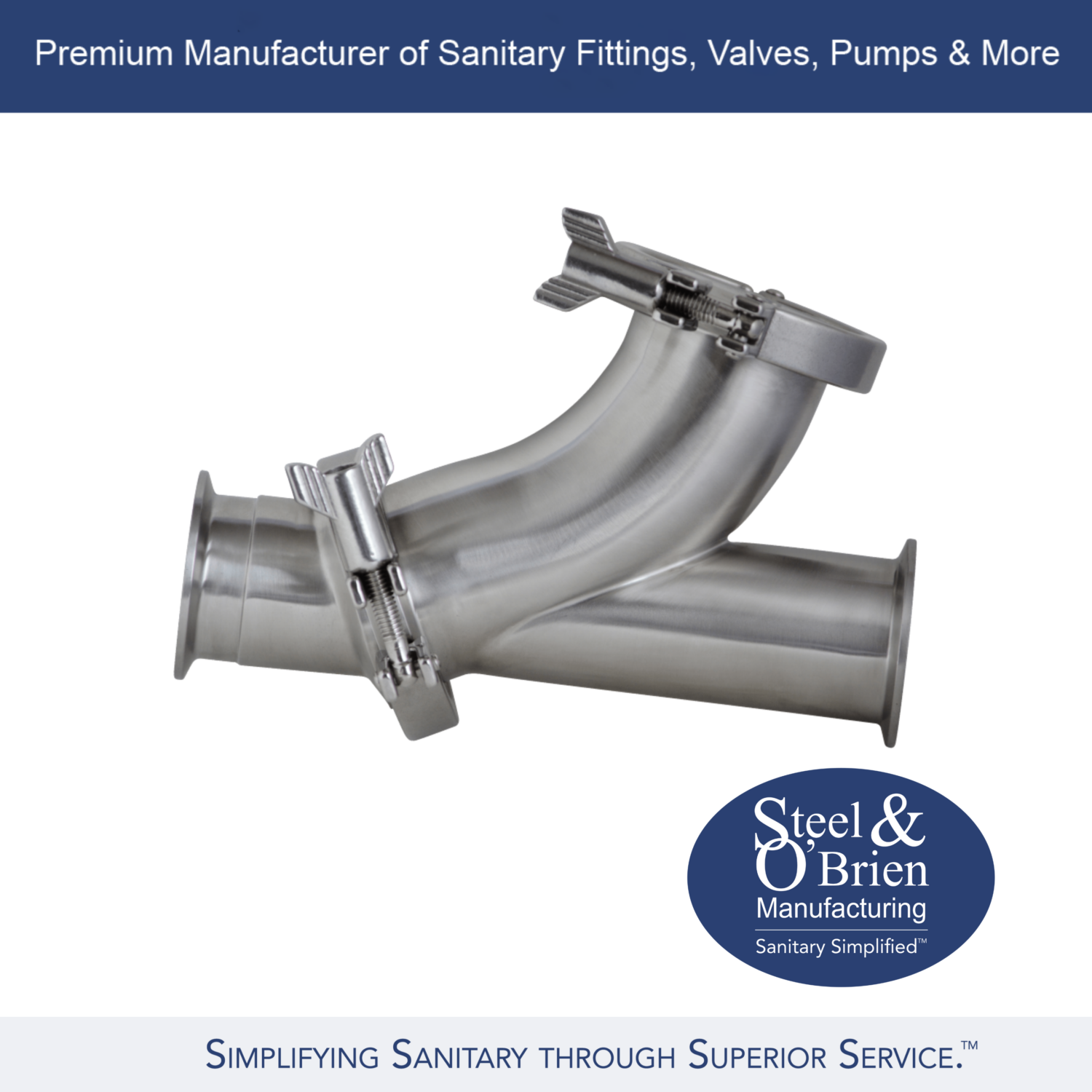

During forward flow, fluid pressure pushes the ball away from its seat and into the enlarged Y-shaped chamber of the valve body. This allows fluid to pass through the main flow path.

When forward flow stops or reverse pressure develops, the ball returns to its seat, creating a seal that helps prevent fluid from flowing backward through the piping system.

This automatic operation helps protect upstream process equipment and maintain the intended direction of fluid flow.

What Is the Advantage of a Ball-Type vs. Disc-Type Check Valve?

One advantage of a sanitary ball-type check valve is its ability to reduce flow restriction during forward flow.

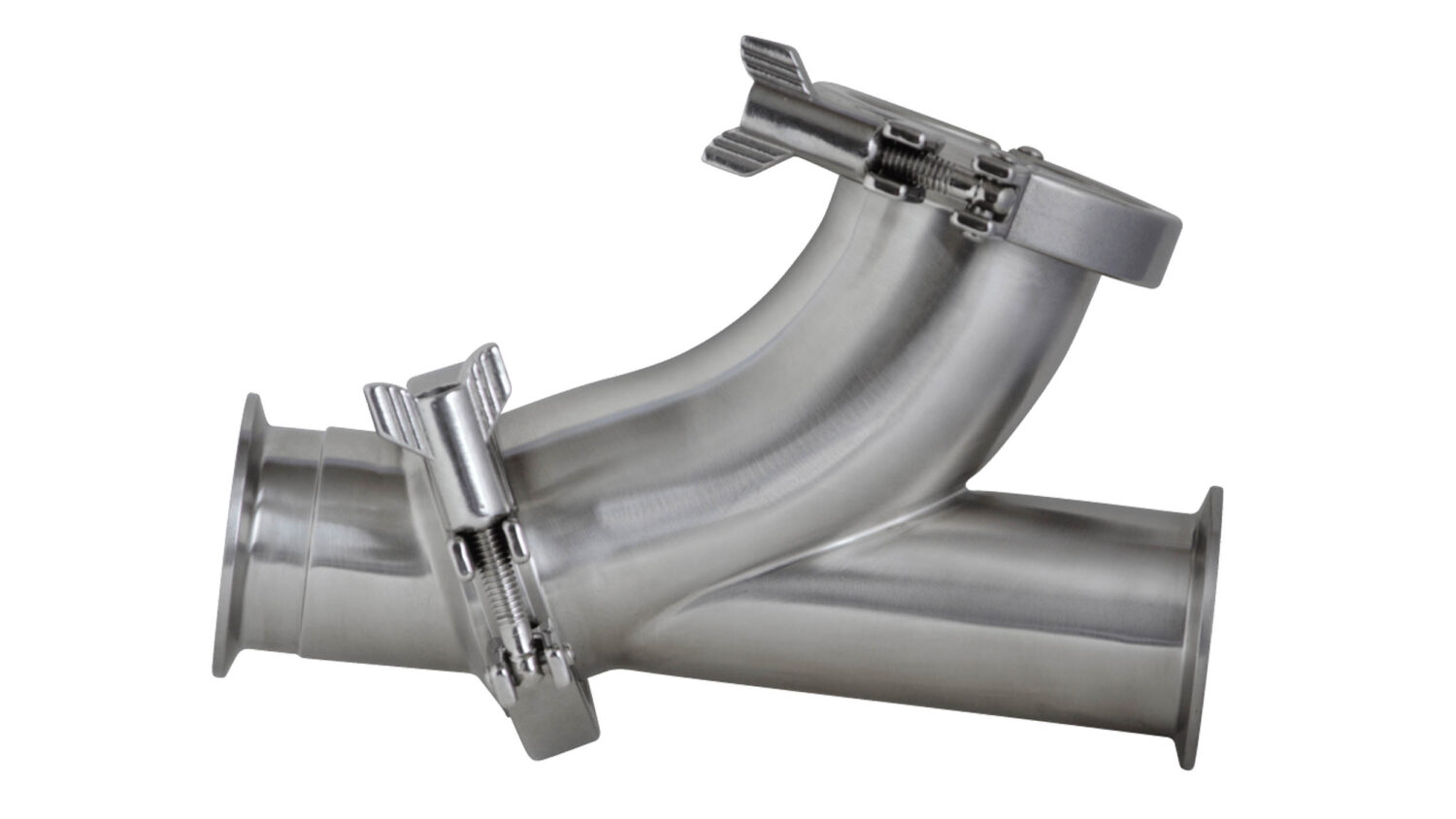

In the TOP-FLO® ball-type design, the ball moves into the enlarged Y-shaped section of the valve body, away from the primary flow path. This configuration can help minimize pressure drop during higher-flow conditions.

This characteristic is particularly relevant during clean-in-place (CIP) operations, where maintaining sufficient flow velocity is important for effective cleaning.

Disc-type check valves use a different internal mechanism to control flow direction. Selection between ball-type and disc-type configurations should consider operating pressure, flow requirements, installation orientation, cleaning procedures, and system compatibility.

Where Are Sanitary Ball-Type Check Valves Used?

Sanitary ball-type check valves are commonly used in low-viscosity fluid processing applications, including:

• Water processing and distribution

• Clean-in-place (CIP) systems

• Raw and finished milk processing

• Soft drink production

• Fruit juice processing

Valve selection should account for fluid characteristics, operating conditions, installation requirements, and applicable sanitary standards.

What Are the Features of TOP-FLO® Sanitary Ball-Type Check Valves?

Steel & O’Brien TOP-FLO® ball-type check valves incorporate several features designed to support sanitary processing applications:

• 3-A certification: Supports use in applicable sanitary processing environments, including USDA-inspected dairy operations.

• Two-piece body design: Allows access to the internal seat for replacement and maintenance.

• FDA-conforming FKM seat and seal: Provides material compatibility for specified sanitary processing and cleaning applications.

• Solid virgin PTFE ball: Eliminates the potential for delamination associated with elastomer-covered ball constructions.

• 316L stainless steel wetted components: Material traceability is available to support documentation requirements.

• Replacement parts: Seal and repair kits are available for routine maintenance.

These features help support reliable operation, maintenance, and integration into hygienic processing systems.

How Do You Select the Right Check Valve for Your Application?

Selecting a check valve requires evaluating operating conditions and system requirements, including:

• Fluid type and viscosity

• Flow rate and pressure differential

• Installation orientation

• CIP requirements

• Seat and seal material compatibility

• Applicable sanitary standards

Ball-type valves may offer advantages where reducing flow restriction during forward flow is important. Other configurations may be better suited to different pressure, installation, or application requirements.

For additional configurations and product specifications, view Steel & O’Brien sanitary check valves, including ball-type, disc-type, and air-blow designs.

Steel & O’Brien provides sanitary valve solutions for a wide range of hygienic processing requirements.
